Creating Dashboards

Telemetry has native dashboards built directly into the product. You can pin visualizations from both Explore and Query, then arrange them into a single team view.

What a dashboard includes

  • Dashboard: a named page for related metrics.
  • Widget: a saved chart or table.
  • Widget source: either an Explore configuration or a Query result/chart.
  • Layout: drag and resize widgets in Edit mode.

Step 1: Create a dashboard

You can create dashboards in two ways:

  1. In the left sidebar, open Dashboards menu and click New Dashboard.
  2. From Explore, click Add to Dashboard. If no dashboards exist yet, Telemetry will prompt you to create one first.

Step 2: Add widgets from Explore

  1. Open a table and go to the Explore tab.
  2. Choose:
    • graph type (Samples, Table, Line, Bar, or Stacked Area)
    • aggregation and granularity (for chart views)
    • time range, filters, and group by fields
  3. Click Run.
  4. In the results toolbar above the chart, click Add to Dashboard.
  5. Enter a widget title, select a dashboard, and save.

After you run an Explore query, Telemetry shows the action buttons on the right side of the results toolbar:

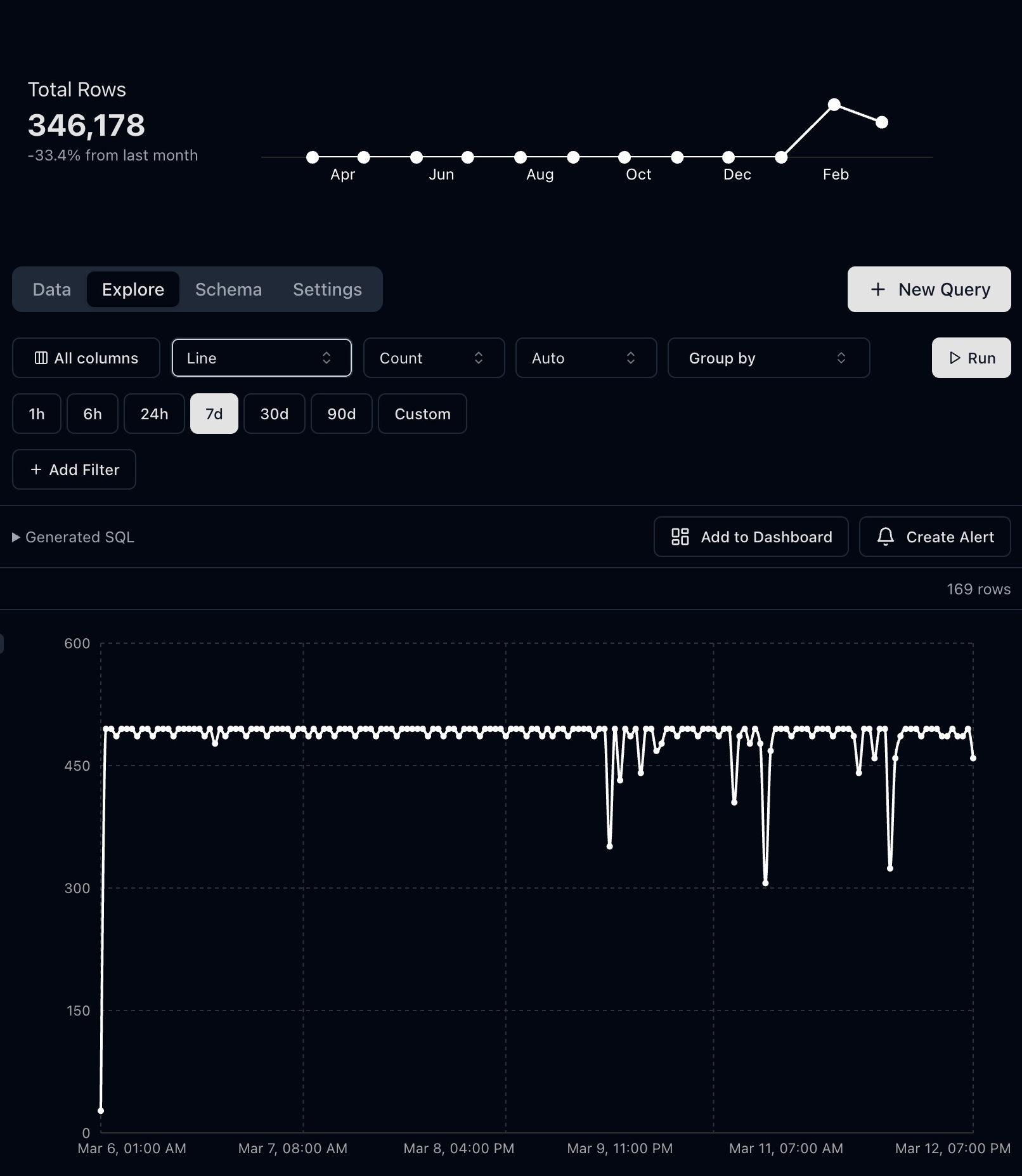

Telemetry Explore view showing the Add to Dashboard button and Create Alert button above the chart.

Use Add to Dashboard from the results toolbar after clicking Run.

Telemetry stores the full Explore state, so the widget stays consistent with the chart/table you pinned.

Step 3: Add widgets from Query

  1. Open a saved query or draft query.
  2. Run the query and switch to either Results or Chart.
  3. Click Add to Dashboard.
  4. Choose the destination dashboard and save.

Use this path when you want fully custom SQL rather than Explore-generated SQL.

Step 4: Arrange and maintain your dashboard

  1. Open /team/{team}/dashboard/{dashboard-slug}.
  2. Click Edit.
  3. Drag widgets by the handle, resize as needed, and remove widgets with X.
  4. Click Done when layout changes look right.

You can also rename, copy URL, or delete dashboards from the dashboard actions menu in the sidebar.

Inline interactive examples

Example 1: Error rate trend widget (Line)

Run this in Explore or Query, then pin it with Add to Dashboard.

SELECT
  date_trunc('hour', timestamp_utc) AS hour,
  100.0 * SUM(CASE WHEN status_code >= 500 THEN 1 ELSE 0 END) / COUNT(*) AS error_rate_pct
FROM
  http_logs
WHERE
  timestamp_utc >= now() - INTERVAL '7 days'
GROUP BY
  hour
ORDER BY
  hour ASC
Example 2: Top slow endpoints widget (Bar)

Use a Bar chart for ranking. Great for API and queue monitoring dashboards.

SELECT
  endpoint,
  AVG(duration_ms) AS avg_duration_ms
FROM
  http_logs
WHERE
  timestamp_utc >= now() - INTERVAL '24 hours'
GROUP BY
  endpoint
ORDER BY
  avg_duration_ms DESC
LIMIT 15
Example 3: Recent failures drilldown widget (Table)

Add this as a table widget next to trend charts for fast root-cause debugging.

SELECT
  timestamp_utc,
  service,
  endpoint,
  status_code,
  error_message
FROM
  http_logs
WHERE
  status_code >= 500
  AND timestamp_utc >= now() - INTERVAL '24 hours'
ORDER BY
  timestamp_utc DESC
LIMIT 200

Dashboard design tips

  • Keep one primary question per widget (for example: "Are error rates rising?").
  • Mix trend widgets with drilldown tables.
  • Use clear widget titles so teammates can scan the page quickly.
  • Start with 4-8 widgets; add more only when each one adds a new decision signal.
